MRS58ZB (for interior )
Line up : 1.0 / 1.5 / 2.0 / 2.5mm
Formation SHEET
This product is a Hard Coat PC/PMMA sheet that achieves both 2.5D formability and surface hardness, while suppressing spring-back phenomena.
It is a sheet that enhances the design flexibility of the CID (Center Information Display). (Hole processing possible)
-

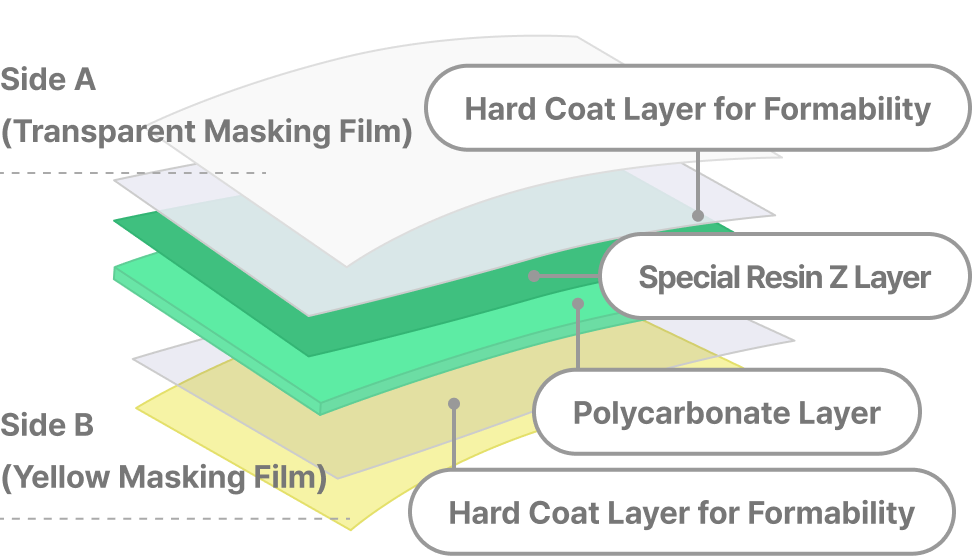

MRS58ZB Sheet + AR Film
| TEST Contents | Thermoforming Grade MRS58ZB 2.0mm | |
|---|---|---|
| Total Light Transmittance | JIS K7361-1 | ≧89% |
| Haze | JIS K7136 | ≦0.2% |
| Retardation | Rotary photodetector method | ≧6000nm |
| Pencil Hardness | JIS K 5600-5-4 | 3H |
| Erichsen Hardness(318) | TL226： 2016-10 Table 3 NO.3 | No coating peeling |
| Cotton cloth Scratch Resistance | load：500gf/㎝2, 1,000 round trip | No scratches |
※ The values in the table are representative and not guaranteed.

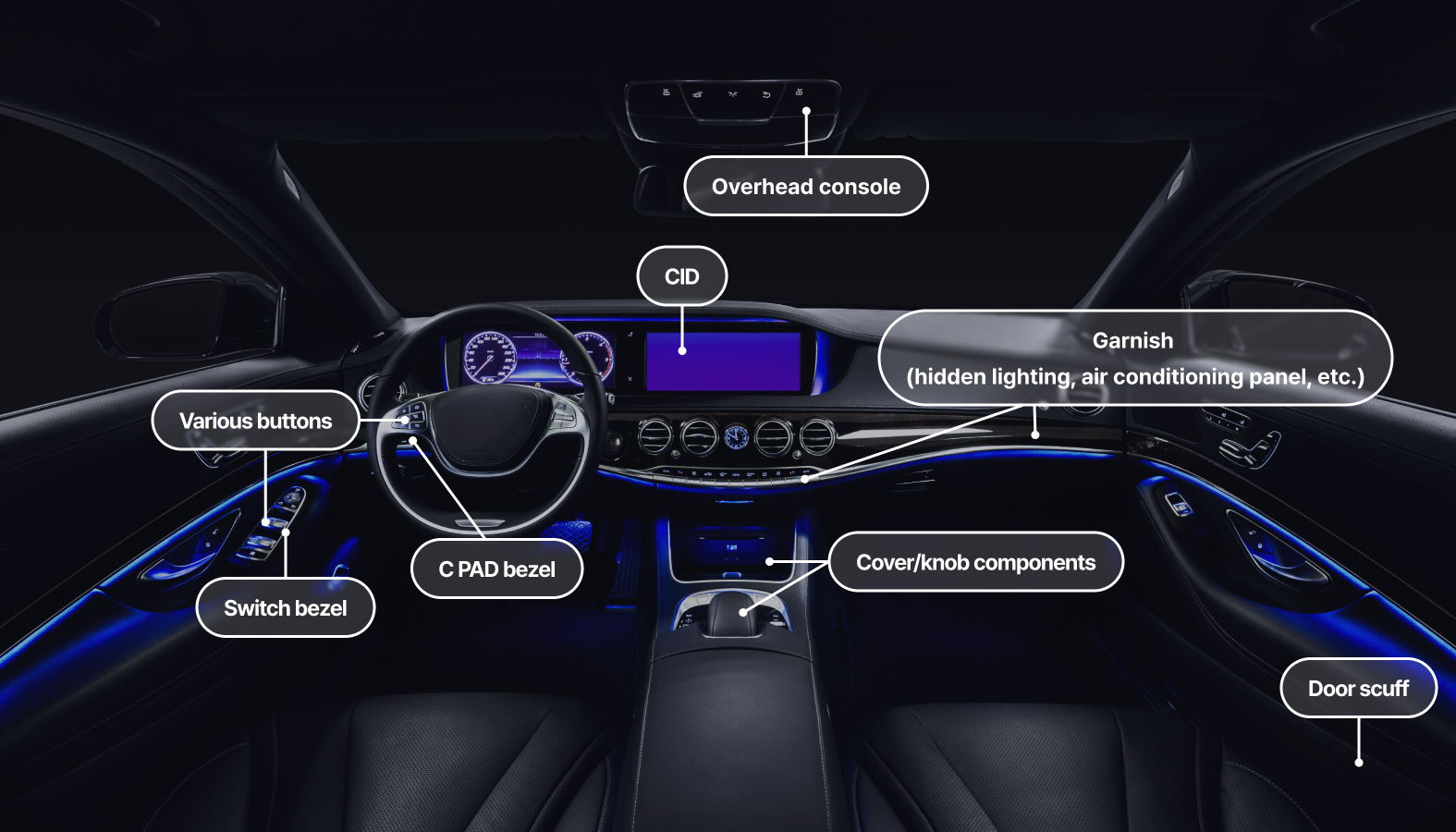

For interior

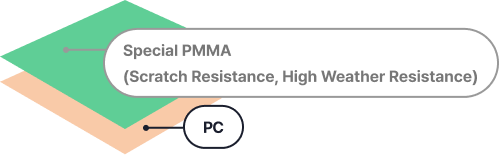

D02PU (For exterior)
This co-extruded PC/Special PMMA sheet offers excellent formability and weather resistance.
It can be printed on the sheet and after thermoforming the printed sheet, it can be attached without the injection molding process.
-
D02PU 3.0 mmt molded sample
| Formability | Pencil Hardness | Steel wool Scratch | After Xenon Weathering Test SAEJ2527 (3762kJ) | ||
|---|---|---|---|---|---|
| ΔE | ΔYI | ΔHAZE | |||
| Elongation >200% | H~2H | O | 0.3 | 0.9 | 1.2% |
※ The figures in the table are representative figures that are not guaranteed
External Item Test Results
| Category | Condition | Result |
|---|---|---|
| Chipping Test | SAEJ400 | fine scratching |
| Car Wash Test | DINENISO 20566 | Gloss retention rate 63% |
| RCA Abrasion Test | 175g,300回 | Slight Trace / Faint Mark |
| Alcohol Abrasion Test | 200g, ethanol, 300回 | Slight Trace / Faint Mark |
| DuPont Impact Test | 500g, 500mm hegiht, 23℃ or -40℃ | No break |
| Chemical Resistance | Gasoline, etc | Everything is fine |
| Corrosion Resistance | Class brine spray test | Everything is fine |
| Low-Temperature Storage | -40℃, 48 hours | Everything is fine |
| High-Temperature Storage | 95℃, 48 hours | Everything is fine |
| High-Temperature Storage | 90℃, 240 hours | Everything is fine |
| Heat & Humidity Resistance | 47℃, 96%RH, 168 hours | Everything is fine |
| Cooling Exchange Change | 90℃(15.5 hours) ⇒ room temperature(0.5 hours) ⇒ -40℃(7.5 hours) ⇒ room temperature(0.5 hours) : 5cycle |
Everything is fine |
| Cold and Heat shock | 90℃(1 hours) ⇒ -40℃(1 hours) : 6cycle | Everything is fine |
| Water Resistance | 40℃, 240 hours | Everything is fine |

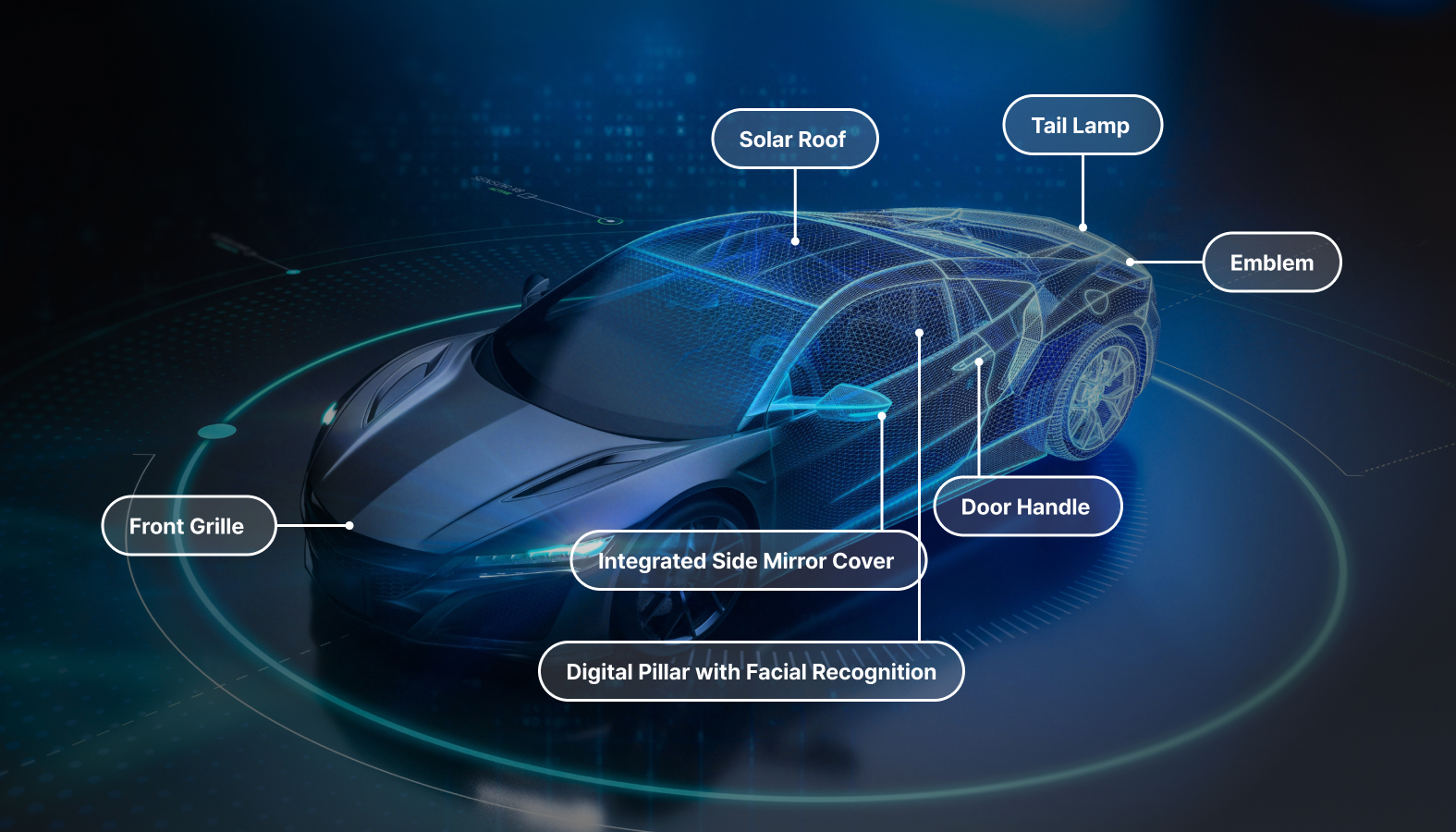

Example of exterior material application
※ Film products are manufactured by MGC (Mitsubishi Gas Chemical) in Japan and supplied by JWMT in Korea.
